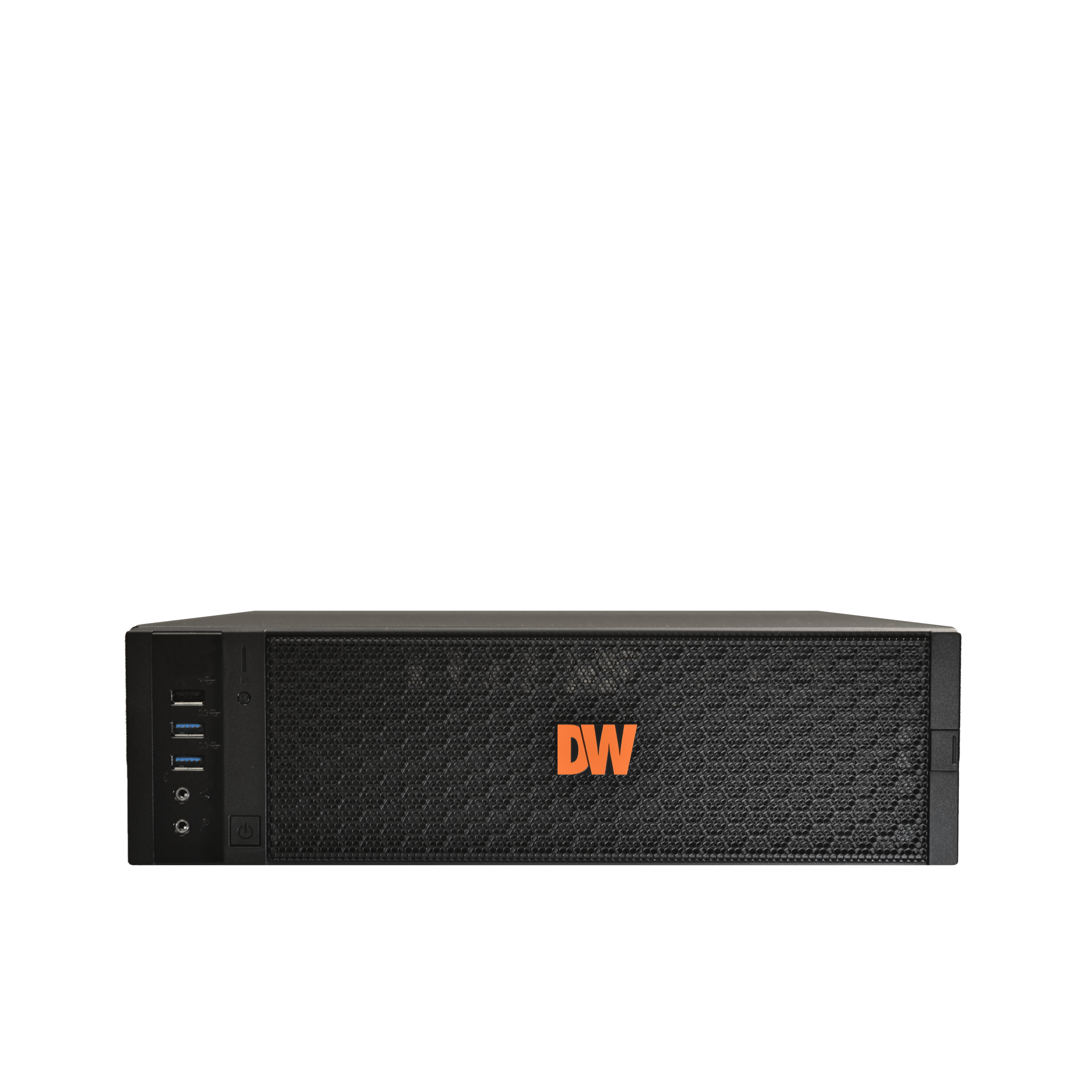

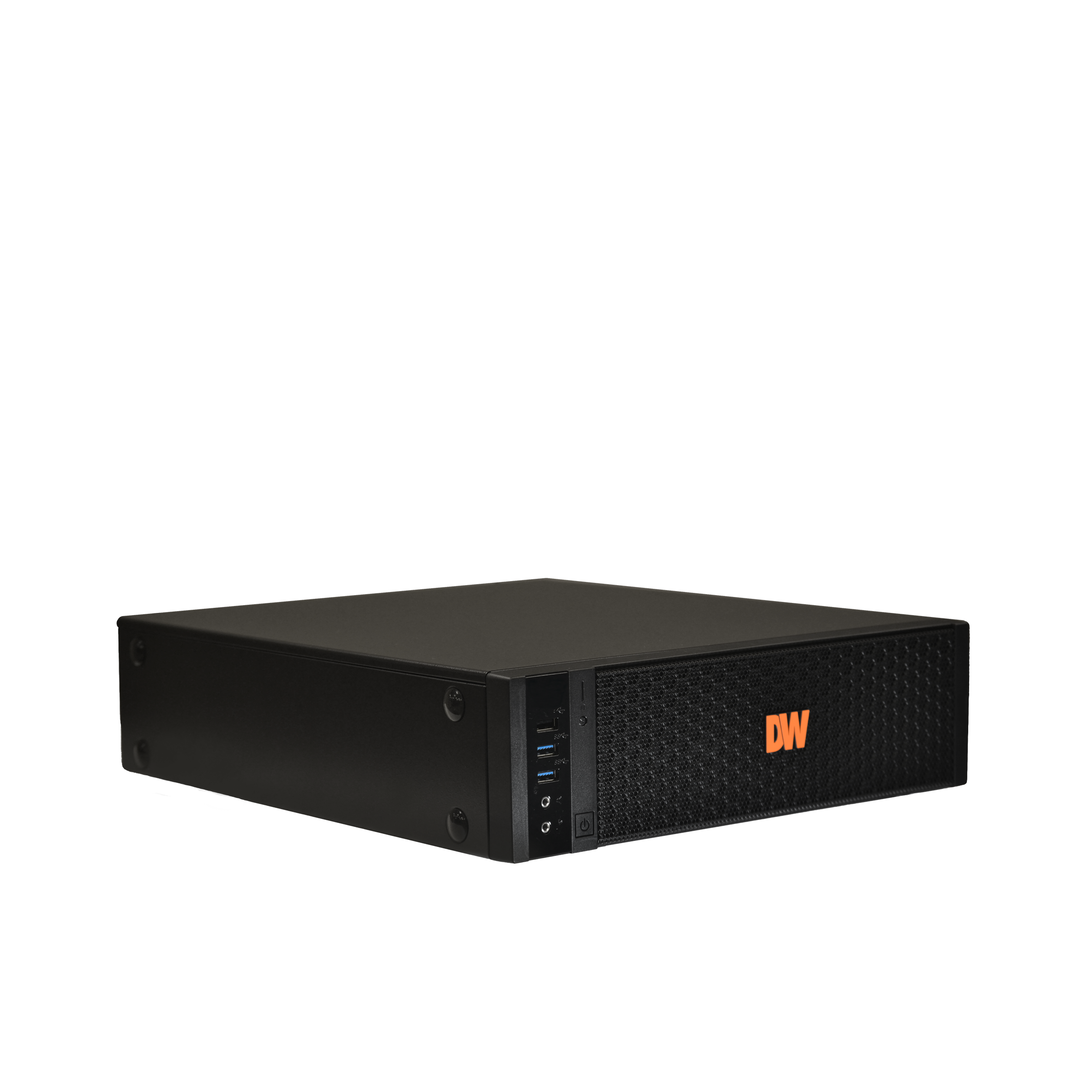

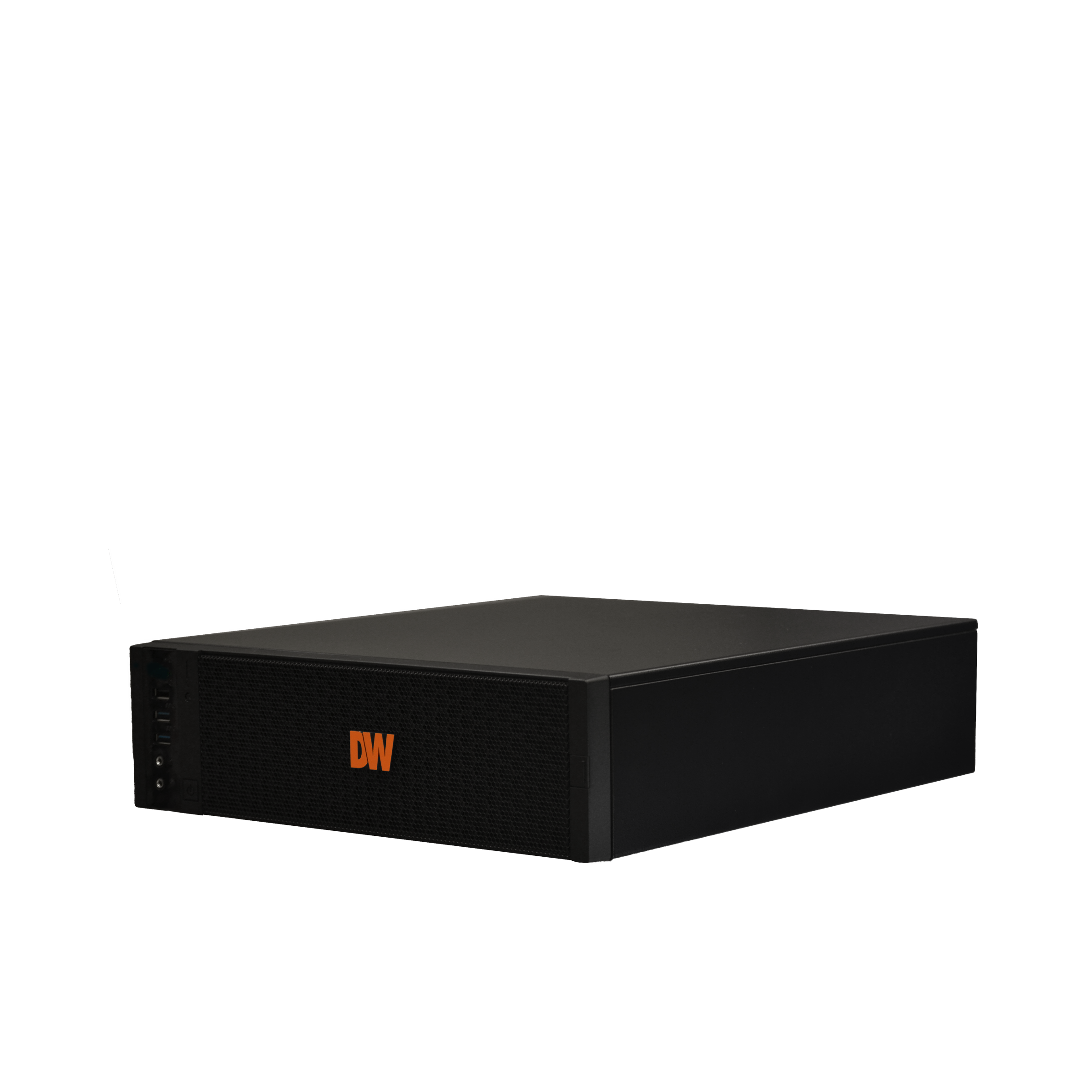

DW-BJDX11xT-LX

Blackjack DX Server, Intel Celeron Processor
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Supports all ONVIF conformant IP cameras
  • Storage options 2-40TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 80Mbps throughput
  • Intel® processor
  • 1xTrue HD, 1x DVI-D and 1x D-Sub, 1 display output at a time
  • Dual network ports
  • Ubuntu® Linux® OS
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability and auto device discovery
  • Dual stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty

Learn about how DW
solutions can work for you

View All Markets

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 80Mbps throughput.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel® quad core processor
Display Modes Unlimited, Customizable, Sequence
Local Video Output Resolution HD 1080p
Local Video Outputs For initial configuration and server management, D-Sub port, DVI, True HD, 1 display output at a time
Memory 4GB
Video Card On-board Intel Graphics
Video Compression H.264, H.265
Video Operating System Linux® Ubuntu Desktop 20.04.5 LTS OS
OS on SSD m.2 SSD
Max throughput (Mbps) 80Mbps
Storage
Raw internal storage options 002TB  004TB  008TB  012TB  016TB  020TB  024TB  030TB  040TB
RAID Options No RAID
Max HDD Bay 2 x SATA HDD
Maximum Storage 12TB (DW-BJDX1112T-LX), 16TB (DW-BJDX1116T-LX), 24TB (DW-BJDX1124T-LX), 2TB (DW-BJDX1102T-LX), 4TB (DW-BJDX1104T-LX), 8TB (DW-BJDX1108T-LX), 20TB (DW-BJDX1120T-LX), 32TB (DW-BJDX1132T-LX), 40TB (DW-BJDX1140T-LX)
Performance
Playback Functions Calendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ control ONVIF
Recording Modes Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System Operation Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
Network
Backup Network backup via DW Spectrum IPVMS

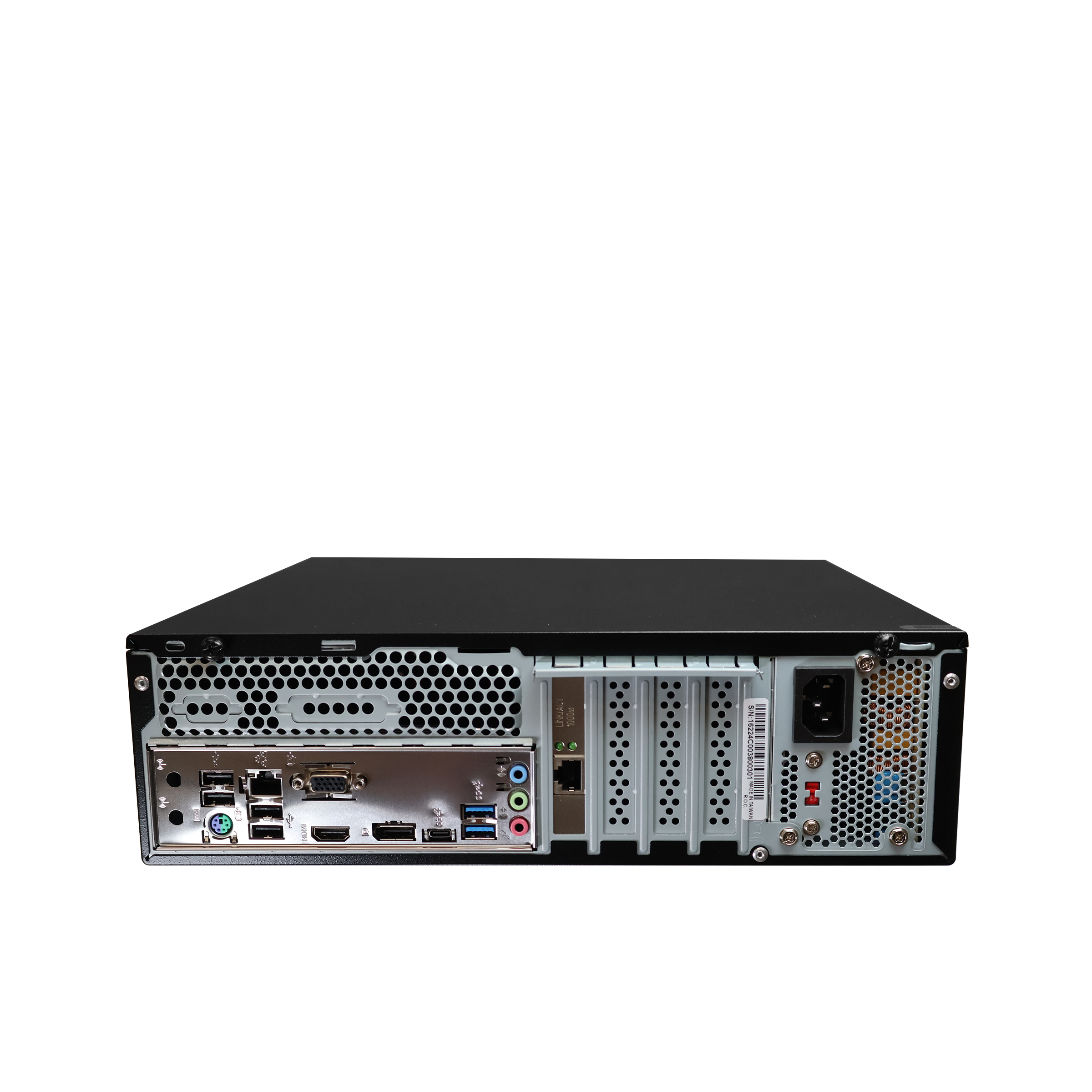

Ethernet Ports 2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum® IPVMS
Network Remote Software Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Spectrum Mobile App
Electrical
Power Consumption 300W, A UPS is recommended
General
Accessories Keyboard, Mouse
Included IP licenses 4
Operating Temperature and Humidity 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Recorder Dimensions (H X W X D) Standing: 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm), Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm)
Recording Licenses (Optional. Sold Separately) Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 15.65 lbs (7.09 kg)
Certification CE  FCC  NDAA Compliance  ONVIF Conformant  TAA Compliance
Form Factor Slim Desktop

Part Numbers

Model #

Storage Size

DW-BJDX1102T-LX 2TB internal storage
DW-BJDX1104T-LX
4TB internal storage
DW-BJDX1108T-LX
8TB internal storage
DW-BJDX1112T-LX 12TB internal storage
DW-BJDX1116T-LX 16TB internal storage
DW-BJDX1120T-LX 20TB internal storage
DW-BJDX1124T-LX 24TB internal storage
DW-BJDX1132T-LX 32TB internal storage
DW-BJDX1140T-LX 40TB internal storage

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum IPVMS License - allows up to 16-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Documents

Title Type
DW-BJDX11 (HW Rev B) quick setup guide
pdf Download
DW-BJDX11 HW Rev B datasheet
pdf Download
DW-BJDX11 HW Rev B datasheet - French
pdf Download
DW-BJDX11 HW Rev B datasheet - Spanish
pdf Download
DW-BJDX11 (HW Rev A) quick setup guide
pdf Download
DW-BJDX CAD drawing
dwg Download
DW-BJDX11 A&E specifications
doc Download
DW-BJDX11 HW Rev A datasheet - French
pdf Download
DW-BJDX11 HW Rev A datasheet - Spanish
pdf Download
Blackjack Brochure
pdf Download
View All Documents

Software

Title Type Release Notes Version Update Date Compatibility Size
DW Spectrum IPVMS Latest Software Ext. URL v6.0.0.39503 10/31/2024 N/A Open DWCloud™
DW Spectrum IPVMS C•CURE 9000 Plug-in v5.0 zip - 5.0 11/16/2022 DW Spectrum 25.77 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download
